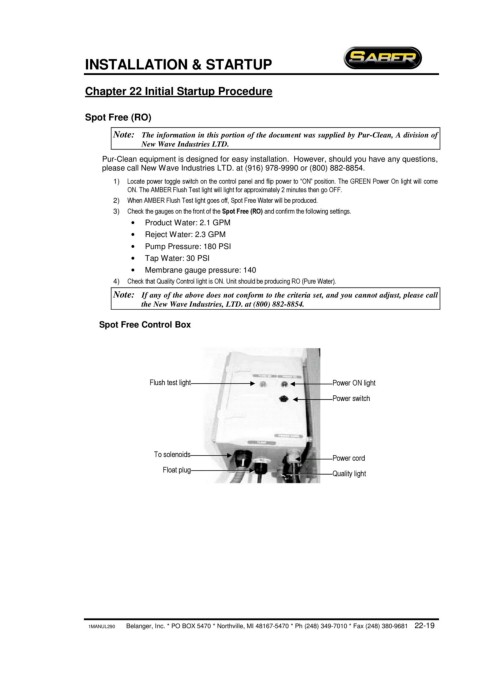

INSTALLATION & STARTUP

Chapter 22 Initial Startup Procedure

Spot Free (RO)
Note: The information in this portion of the document was supplied by Pur-Clean, A division of
New Wave Industries LTD.
Pur-Clean equipment is designed for easy installation. However, should you have any questions,
please call New Wave Industries LTD. at (916) 978-9990 or (800) 882-8854.
1) Locate power toggle switch on the control panel and flip power to “ON” position. The GREEN Power On light will come
ON. The AMBER Flush Test light will light for approximately 2 minutes then go OFF.
2) When AMBER Flush Test light goes off, Spot Free Water will be produced.
3) Check the gauges on the front of the Spot Free (RO) and confirm the following settings.
· Product Water: 2.1 GPM
· Reject Water: 2.3 GPM
· Pump Pressure: 180 PSI
· Tap Water: 30 PSI
· Membrane gauge pressure: 140
4) Check that Quality Control light is ON. Unit should be producing RO (Pure Water).
Note: If any of the above does not conform to the criteria set, and you cannot adjust, please call
the New Wave Industries, LTD. at (800) 882-8854.

Spot Free Control Box

Flush test light Power ON light
Power switch

To solenoids
Power cord
Float plug
Quality light
