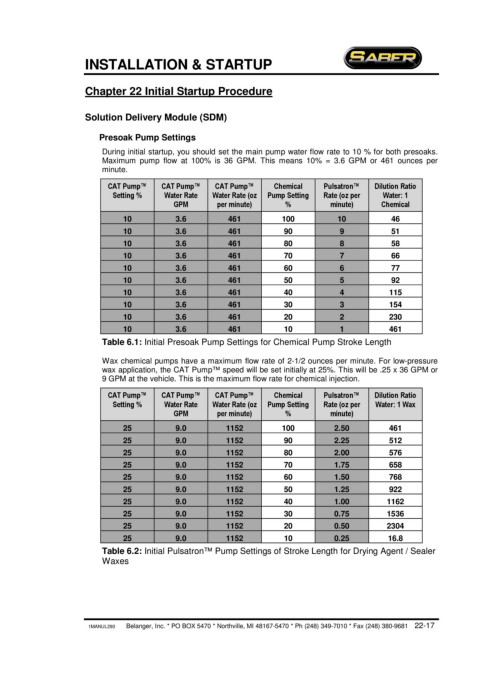

INSTALLATION & STARTUP

Chapter 22 Initial Startup Procedure

Solution Delivery Module (SDM)

Presoak Pump Settings
During initial startup, you should set the main pump water flow rate to 10 % for both presoaks.
Maximum pump flow at 100% is 36 GPM. This means 10% = 3.6 GPM or 461 ounces per
minute.
CAT Pump™ CAT Pump™ CAT Pump™ Chemical Pulsatron™ Dilution Ratio
Setting % Water Rate Water Rate (oz Pump Setting Rate (oz per Water: 1
GPM per minute) % minute) Chemical

10 3.6 461 100 10 46
10 3.6 461 90 9 51
10 3.6 461 80 8 58
10 3.6 461 70 7 66
10 3.6 461 60 6 77
10 3.6 461 50 5 92
10 3.6 461 40 4 115
10 3.6 461 30 3 154
10 3.6 461 20 2 230
10 3.6 461 10 1 461
Table 6.1: Initial Presoak Pump Settings for Chemical Pump Stroke Length

Wax chemical pumps have a maximum flow rate of 2-1/2 ounces per minute. For low-pressure
wax application, the CAT Pump™ speed will be set initially at 25%. This will be .25 x 36 GPM or
9 GPM at the vehicle. This is the maximum flow rate for chemical injection.

CAT Pump™ CAT Pump™ CAT Pump™ Chemical Pulsatron™ Dilution Ratio
Setting % Water Rate Water Rate (oz Pump Setting Rate (oz per Water: 1 Wax
GPM per minute) % minute)
25 9.0 1152 100 2.50 461
25 9.0 1152 90 2.25 512
25 9.0 1152 80 2.00 576
25 9.0 1152 70 1.75 658
25 9.0 1152 60 1.50 768
25 9.0 1152 50 1.25 922
25 9.0 1152 40 1.00 1162
25 9.0 1152 30 0.75 1536
25 9.0 1152 20 0.50 2304
25 9.0 1152 10 0.25 16.8
Table 6.2: Initial Pulsatron™ Pump Settings of Stroke Length for Drying Agent / Sealer
Waxes
