INSTALLATION & STARTUP
Chapter 22 Initial Startup Procedure

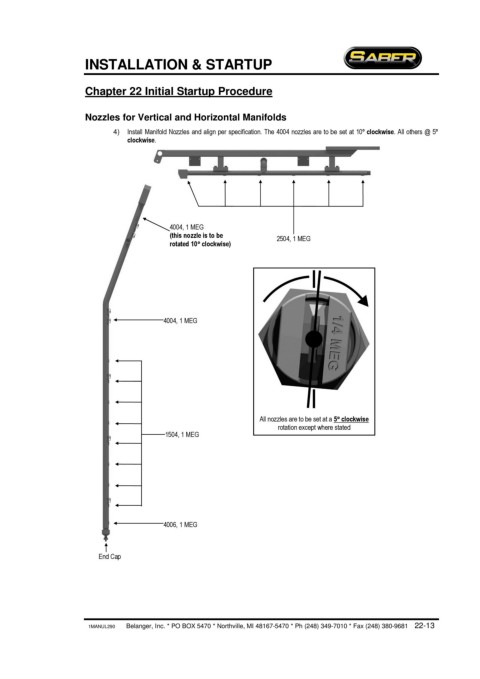

Nozzles for Vertical and Horizontal Manifolds
4) Install Manifold Nozzles and align per specification. The 4004 nozzles are to be set at 10º clockwise. All others @ 5º
clockwise.
4004, 1 MEG
(this nozzle is to be 2504, 1 MEG
rotated 10° °°lockwise)
° c
4004, 1 MEG
° c
All nozzles are to be set at a 5° °°lockwise
rotation except where stated
1504, 1 MEG
4006, 1 MEG
End Cap
