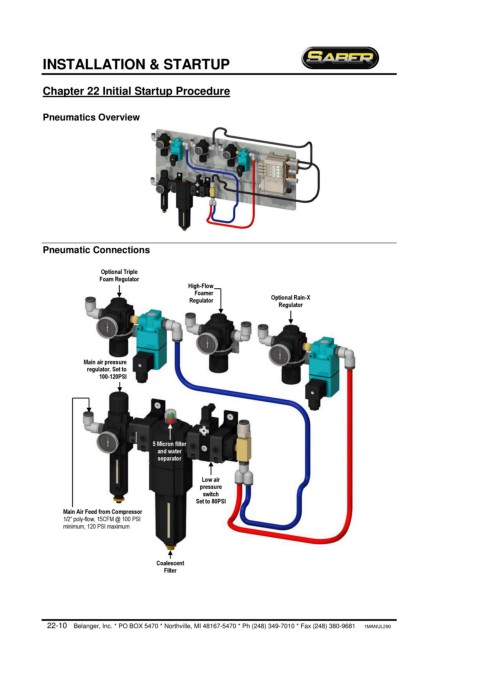

INSTALLATION & STARTUP
Chapter 22 Initial Startup Procedure
Pneumatics Overview
Pneumatic Connections
Optional Triple
Foam Regulator
High-Flow
Foamer
Regulator Optional Rain-X
Regulator
Main air pressure
regulator. Set to
100-120PSI
5 Micron filter
and water
separator
Seperator
Low air
pressure
switch
Set to 80PSI
Main Air Feed from Compressor
1/2” poly-flow, 15CFM @ 100 PSI
minimum, 120 PSI maximum
Coalescent
Filter
