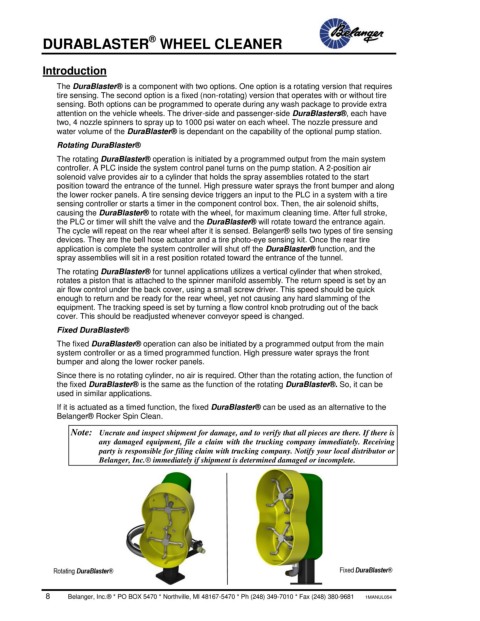

DURABLASTER WHEEL CLEANER

Introduction

The DuraBlaster® is a component with two options. One option is a rotating version that requires
tire sensing. The second option is a fixed (non-rotating) version that operates with or without tire
sensing. Both options can be programmed to operate during any wash package to provide extra
attention on the vehicle wheels. The driver-side and passenger-side DuraBlasters®, each have
two, 4 nozzle spinners to spray up to 1000 psi water on each wheel. The nozzle pressure and
water volume of the DuraBlaster® is dependant on the capability of the optional pump station.
Rotating DuraBlaster®

The rotating DuraBlaster® operation is initiated by a programmed output from the main system
controller. A PLC inside the system control panel turns on the pump station. A 2-position air
solenoid valve provides air to a cylinder that holds the spray assemblies rotated to the start
position toward the entrance of the tunnel. High pressure water sprays the front bumper and along
the lower rocker panels. A tire sensing device triggers an input to the PLC in a system with a tire
sensing controller or starts a timer in the component control box. Then, the air solenoid shifts,
causing the DuraBlaster® to rotate with the wheel, for maximum cleaning time. After full stroke,
the PLC or timer will shift the valve and the DuraBlaster® will rotate toward the entrance again.
The cycle will repeat on the rear wheel after it is sensed. Belanger® sells two types of tire sensing
devices. They are the bell hose actuator and a tire photo-eye sensing kit. Once the rear tire
application is complete the system controller will shut off the DuraBlaster® function, and the
spray assemblies will sit in a rest position rotated toward the entrance of the tunnel.

The rotating DuraBlaster® for tunnel applications utilizes a vertical cylinder that when stroked,
rotates a piston that is attached to the spinner manifold assembly. The return speed is set by an
air flow control under the back cover, using a small screw driver. This speed should be quick
enough to return and be ready for the rear wheel, yet not causing any hard slamming of the
equipment. The tracking speed is set by turning a flow control knob protruding out of the back
cover. This should be readjusted whenever conveyor speed is changed.
Fixed DuraBlaster®
The fixed DuraBlaster® operation can also be initiated by a programmed output from the main
system controller or as a timed programmed function. High pressure water sprays the front
bumper and along the lower rocker panels.
Since there is no rotating cylinder, no air is required. Other than the rotating action, the function of
the fixed DuraBlaster® is the same as the function of the rotating DuraBlaster®. So, it can be
used in similar applications.
If it is actuated as a timed function, the fixed DuraBlaster® can be used as an alternative to the
Belanger® Rocker Spin Clean.
Note: Uncrate and inspect shipment for damage, and to verify that all pieces are there. If there is
any damaged equipment, file a claim with the trucking company immediately. Receiving
party is responsible for filing claim with trucking company. Notify your local distributor or
Belanger, Inc.® immediately if shipment is determined damaged or incomplete.

Rotating DuraBlaster® Fixed DuraBlaster®
