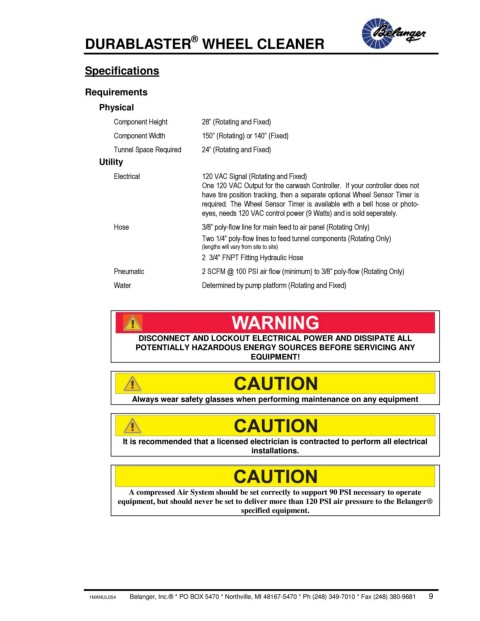

DURABLASTER WHEEL CLEANER

Specifications

Requirements
Physical

Component Height 28” (Rotating and Fixed)
Component Width 150” (Rotating) or 140” (Fixed)
Tunnel Space Required 24” (Rotating and Fixed)
Utility
Electrical 120 VAC Signal (Rotating and Fixed)
One 120 VAC Output for the carwash Controller. If your controller does not
have tire position tracking, then a separate optional Wheel Sensor Timer is
required. The Wheel Sensor Timer is available with a bell hose or photo-
eyes, needs 120 VAC control power (9 Watts) and is sold seperately.
Hose 3/8” poly-flow line for main feed to air panel (Rotating Only)
Two 1/4” poly-flow lines to feed tunnel components (Rotating Only)
(lengths will vary from site to site)
2 3/4" FNPT Fitting Hydraulic Hose
Pneumatic 2 SCFM @ 100 PSI air flow (minimum) to 3/8” poly-flow (Rotating Only)

Water Determined by pump platform (Rotating and Fixed)

DISCONNECT AND LOCKOUT ELECTRICAL POWER AND DISSIPATE ALL
POTENTIALLY HAZARDOUS ENERGY SOURCES BEFORE SERVICING ANY
EQUIPMENT!

Always wear safety glasses when performing maintenance on any equipment

It is recommended that a licensed electrician is contracted to perform all electrical
installations.

A compressed Air System should be set correctly to support 90 PSI necessary to operate
equipment, but should never be set to deliver more than 120 PSI air pressure to the Belanger®
specified equipment.
