DURABLASTER WHEEL CLEANER

Specifications

Operating Envelopes-Inbay Automatics

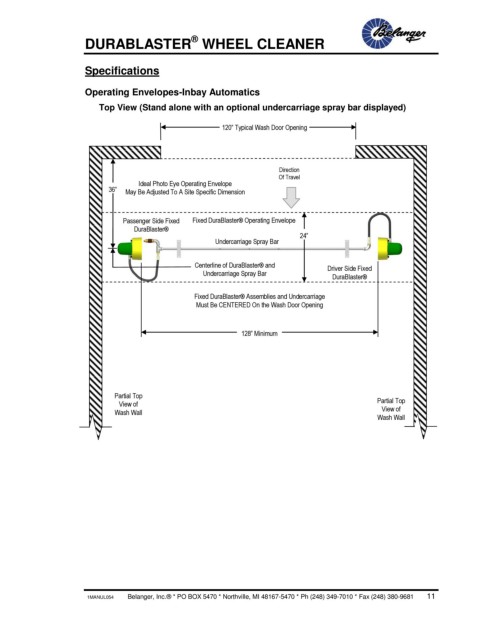

Top View (Stand alone with an optional undercarriage spray bar displayed)

120” Typical Wash Door Opening

Direction
Of Travel
Ideal Photo Eye Operating Envelope
36” May Be Adjusted To A Site Specific Dimension

Passenger Side Fixed Fixed DuraBlaster® Operating Envelope
DuraBlaster®
24”
Undercarriage Spray Bar

Centerline of DuraBlaster® and
Undercarriage Spray Bar Driver Side Fixed
DuraBlaster®
Fixed DuraBlaster® Assemblies and Undercarriage
Must Be CENTERED On the Wash Door Opening

128” Minimum

Partial Top Partial Top
View of
Wash Wall View of
Wash Wall
