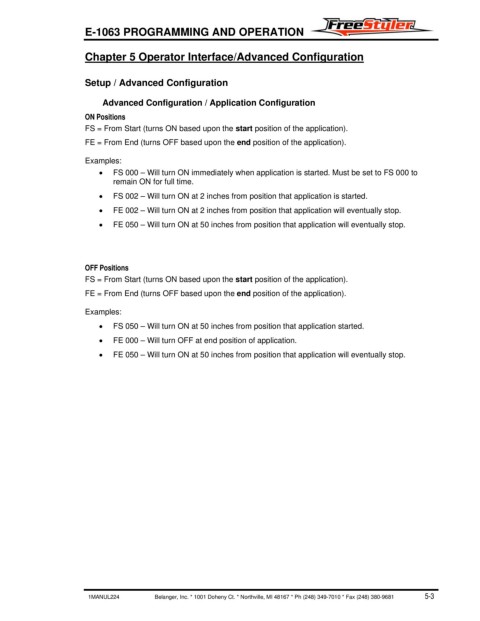

Page 49 - FreeStyler® E-1063 Programming and Operation Manual
P. 49

E-1063 PROGRAMMING AND OPERATION


                       Chapter 5 Operator Interface/Advanced Configuration


                       Setup / Advanced Configuration


                           Advanced Configuration / Application Configuration
                       ON Positions
                       FS = From Start (turns ON based upon the start position of the application).
                       FE = From End (turns OFF based upon the end position of the application).

                       Examples:
                          •   FS 000 – Will turn ON immediately when application is started. Must be set to FS 000 to
                              remain ON for full time.
                          •   FS 002 – Will turn ON at 2 inches from position that application is started.

                          •   FE 002 – Will turn ON at 2 inches from position that application will eventually stop.
                          •   FE 050 – Will turn ON at 50 inches from position that application will eventually stop.



                       OFF Positions
                       FS = From Start (turns ON based upon the start position of the application).
                       FE = From End (turns OFF based upon the end position of the application).

                       Examples:
                          •   FS 050 – Will turn ON at 50 inches from position that application started.

                          •   FE 000 – Will turn OFF at end position of application.
                          •   FE 050 – Will turn ON at 50 inches from position that application will eventually stop.




































                       1MANUL224                     Belanger, Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (248) 349-7010 * Fax (248) 380-9681                    5-3
