SUPER PUMPING STATION

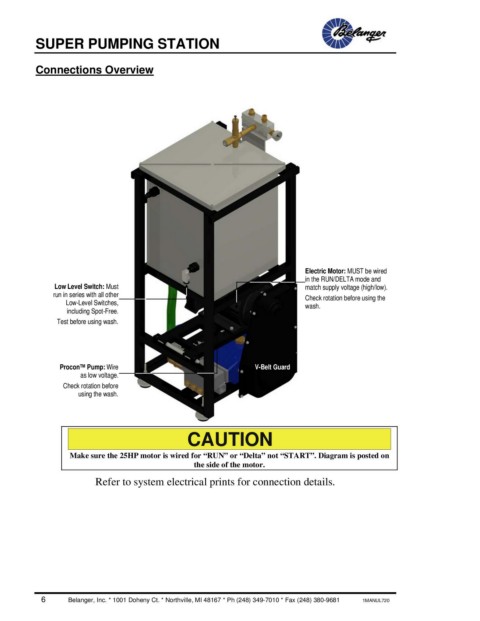

Connections Overview
Electric Motor: MUST be wired
in the RUN/DELTA mode and
Low Level Switch: Must match supply voltage (high/low).
run in series with all other Check rotation before using the
Low-Level Switches, wash.
including Spot-Free.
Test before using wash.
Procon™ Pump: Wire V-Belt Guard
as low voltage.
Check rotation before
using the wash.
CAUTION
Make sure the 25HP motor is wired for “RUN” or “Delta” not “START”. Diagram is posted on
the side of the motor.
Refer to system electrical prints for connection details.
