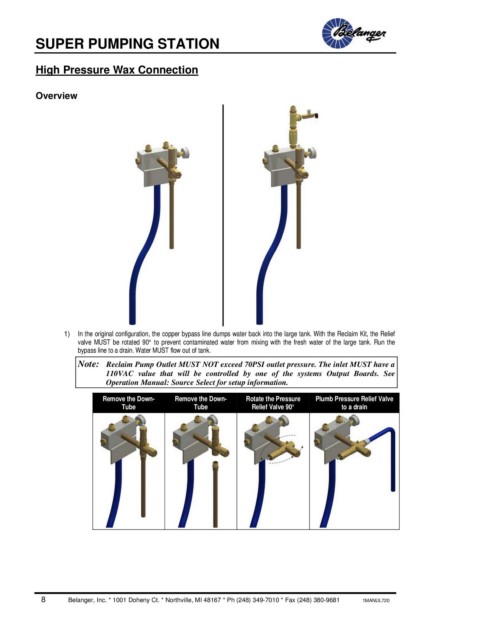

SUPER PUMPING STATION
High Pressure Wax Connection
Overview
1) In the original configuration, the copper bypass line dumps water back into the large tank. With the Reclaim Kit, the Relief
valve MUST be rotated 90° to prevent contaminated water from mixing with the fresh water of the large tank. Run the
bypass line to a drain. Water MUST flow out of tank.
Note: Reclaim Pump Outlet MUST NOT exceed 70PSI outlet pressure. The inlet MUST have a
110VAC value that will be controlled by one of the systems Output Boards. See
Operation Manual: Source Select for setup information.
Remove the Down- Remove the Down- Rotate the Pressure Plumb Pressure Relief Valve
Tube Tube Relief Valve 90° to a drain
