SUPER PUMPING STATION

Maintenance

Drive Belt Replacement and Tightening

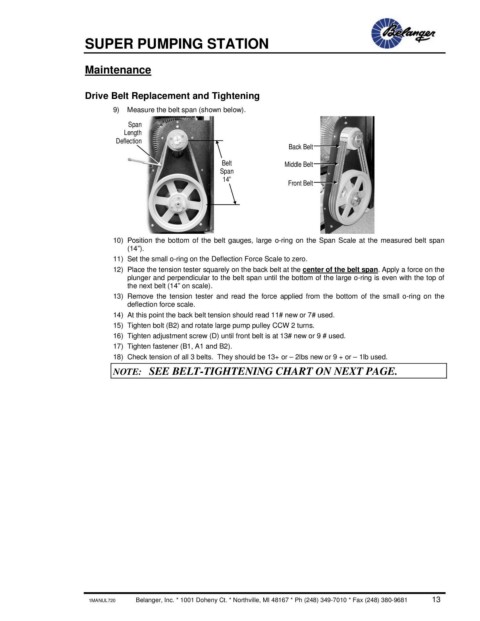

9) Measure the belt span (shown below).
Span
Length
Deflection
Back Belt
Belt Middle Belt
Span
14” Front Belt

10) Position the bottom of the belt gauges, large o-ring on the Span Scale at the measured belt span
(14”).
11) Set the small o-ring on the Deflection Force Scale to zero.
12) Place the tension tester squarely on the back belt at the center of the belt span. Apply a force on the
plunger and perpendicular to the belt span until the bottom of the large o-ring is even with the top of
the next belt (14” on scale).
13) Remove the tension tester and read the force applied from the bottom of the small o-ring on the
deflection force scale.
14) At this point the back belt tension should read 11# new or 7# used.
15) Tighten bolt (B2) and rotate large pump pulley CCW 2 turns.
16) Tighten adjustment screw (D) until front belt is at 13# new or 9 # used.
17) Tighten fastener (B1, A1 and B2).
18) Check tension of all 3 belts. They should be 13+ or – 2lbs new or 9 + or – 1lb used.
NOTE: SEE BELT-TIGHTENING CHART ON NEXT PAGE.
