SUPER PUMPING STATION
Connections Overview

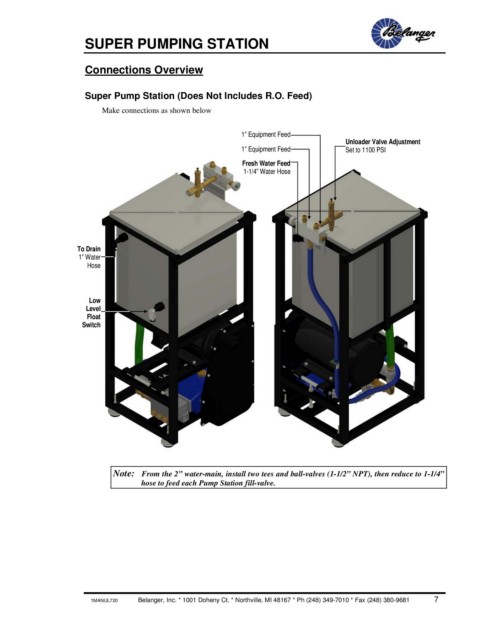

Super Pump Station (Does Not Includes R.O. Feed)
Make connections as shown below
1” Equipment Feed Unloader Valve Adjustment
1” Equipment Feed Set to 1100 PSI
Fresh Water Feed
1-1/4” Water Hose
To Drain
1” Water
Hose
Low
Level
Float
Switch
Note: From the 2” water-main, install two tees and ball-valves (1-1/2” NPT), then reduce to 1-1/4”
hose to feed each Pump Station fill-valve.
