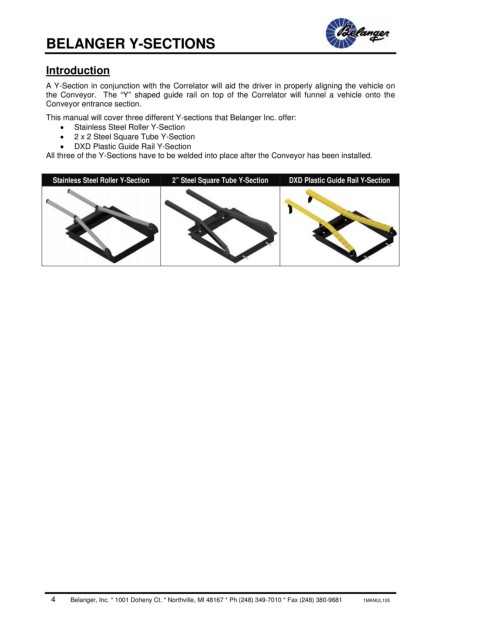

BELANGER Y-SECTIONS
Introduction
A Y-Section in conjunction with the Correlator will aid the driver in properly aligning the vehicle on
the Conveyor. The “Y” shaped guide rail on top of the Correlator will funnel a vehicle onto the
Conveyor entrance section.
This manual will cover three different Y-sections that Belanger Inc. offer:
• Stainless Steel Roller Y-Section
• 2 x 2 Steel Square Tube Y-Section
• DXD Plastic Guide Rail Y-Section
All three of the Y-Sections have to be welded into place after the Conveyor has been installed.
Stainless Steel Roller Y-Section 2” Steel Square Tube Y-Section DXD Plastic Guide Rail Y-Section
