BELANGER Y-SECTIONS
Installation

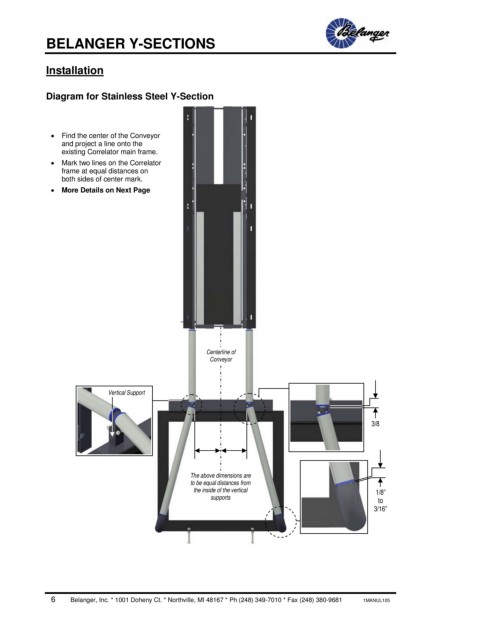

Diagram for Stainless Steel Y-Section
• Find the center of the Conveyor
and project a line onto the
existing Correlator main frame.
• Mark two lines on the Correlator
frame at equal distances on
both sides of center mark.
• More Details on Next Page
Centerline of
Conveyor
Vertical Support
3/8
The above dimensions are
to be equal distances from
the inside of the vertical 1/8”
supports
to
3/16”
