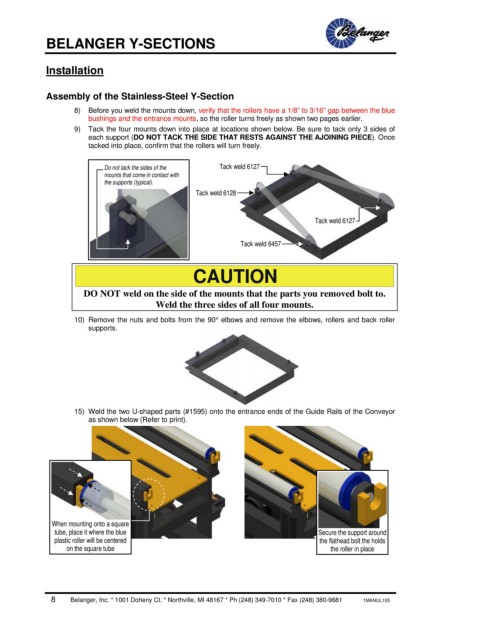

BELANGER Y-SECTIONS

Installation

Assembly of the Stainless-Steel Y-Section

8) Before you weld the mounts down, verify that the rollers have a 1/8” to 3/16” gap between the blue
bushings and the entrance mounts, so the roller turns freely as shown two pages earlier.
9) Tack the four mounts down into place at locations shown below. Be sure to tack only 3 sides of
each support (DO NOT TACK THE SIDE THAT RESTS AGAINST THE AJOINING PIECE). Once
tacked into place, confirm that the rollers will turn freely.

Do not tack the sides of the Tack weld 6127
mounts that come in contact with
the supports (typical).
Tack weld 6128

Tack weld 6127

Tack weld 6457

CAUTION

DO NOT weld on the side of the mounts that the parts you removed bolt to.
Weld the three sides of all four mounts.
10) Remove the nuts and bolts from the 90° elbows and remove the elbows, rollers and back roller
supports.

15) Weld the two U-shaped parts (#1595) onto the entrance ends of the Guide Rails of the Conveyor
as shown below (Refer to print).

When mounting onto a square
tube, place it where the blue Secure the support around

plastic roller will be centered the flathead bolt the holds
on the square tube the roller in place
