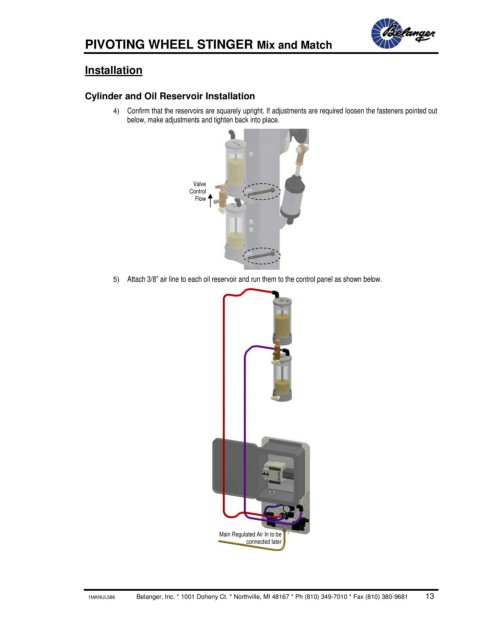

PIVOTING WHEEL STINGER Mix and Match

Installation

Cylinder and Oil Reservoir Installation

4) Confirm that the reservoirs are squarely upright. If adjustments are required loosen the fasteners pointed out
below, make adjustments and tighten back into place.

Valve
Control
Flow

5) Attach 3/8” air line to each oil reservoir and run them to the control panel as shown below.

Main Regulated Air In to be
connected later

1MANUL586 Belanger, Inc. * 1001 Doheny Ct. * Northville, MI 48167 * Ph (810) 349-7010 * Fax (810) 380-9681 13
