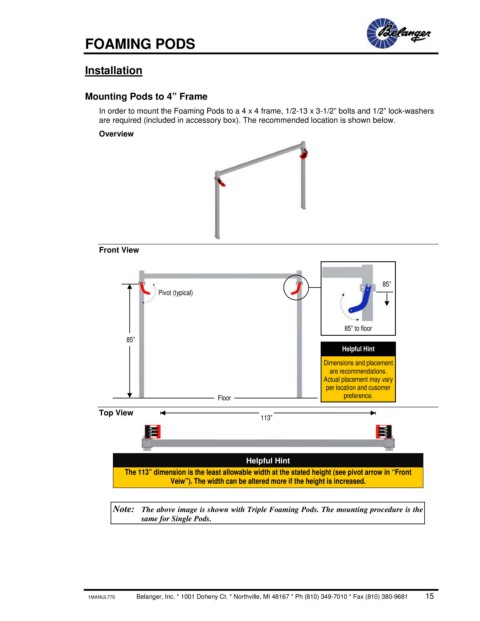

FOAMING PODS
Installation
Mounting Pods to 4” Frame
In order to mount the Foaming Pods to a 4 x 4 frame, 1/2-13 x 3-1/2” bolts and 1/2” lock-washers
are required (included in accessory box). The recommended location is shown below.
Overview
Front View
85”
Pivot (typical)
85” to floor
85”
Helpful Hint
Dimensions and placement
are recommendations.
Actual placement may vary
per location and cusomer
Floor preference.
Top View
113”
Helpful Hint
The 113” dimension is the least allowable width at the stated height (see pivot arrow in “Front
Veiw”). The width can be altered more if the height is increased.
Note: The above image is shown with Triple Foaming Pods. The mounting procedure is the
same for Single Pods.
