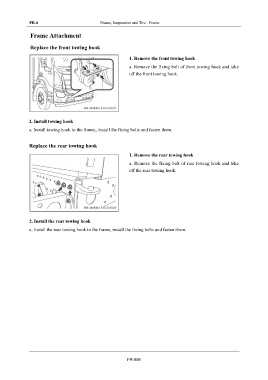

Page 1008 - Foton Workshop Manual - Auman EST-M

FR-8 Frame, Suspension and Tire - Frame

Frame Attachment

Replace the front towing hook

1. Remove the front towing hook

a. Remove the fixing bolt of front towing hook and take
off the front towing hook.

2. Install towing hook
a. Install towing hook to the frame,, install the fixing bolts and fasten them.

Replace the rear towing hook

1. Remove the rear towing hook

a. Remove the fixing bolt of rear towing hook and take
off the rear towing hook.

2. Install the rear towing hook

a. Install the rear towing hook to the frame, install the fixing bolts and fasten them.

FR-008
