FR-12 Frame, Suspension and Tire - Front Suspension

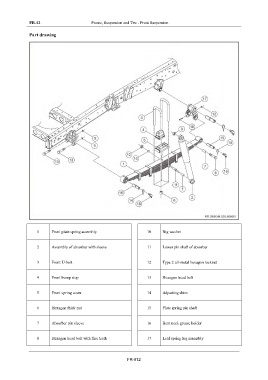

Part drawing

1 Front plate spring assembly 10 Big washer

2 Assembly of absorber with sleeve 11 Lower pin shaft of absorber

3 Front U-bolt 12 Type 2 all-metal hexagon locknut

4 Front bump stop 13 Hexagon head bolt

5 Front spring cover 14 Adjusting shim

6 Hexagon thick nut 15 Plate spring pin shaft

7 Absorber pin sleeve 16 Bent neck grease holder

8 Hexagon head bolt with fine teeth 17 Leaf spring lug assembly
