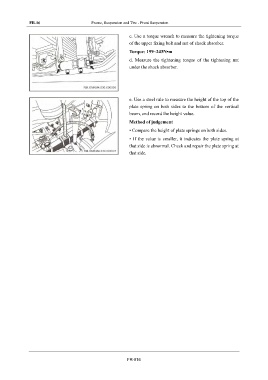

FR-16 Frame, Suspension and Tire - Front Suspension

c. Use a torque wrench to measure the tightening torque
of the upper fixing bolt and nut of shock absorber.
Torque: 199~243N•m

d. Measure the tightening torque of the tightening nut
under the shock absorber.

e. Use a steel rule to measure the height of the top of the
plate spring on both sides to the bottom of the vertical
beam, and record the height value.
Method of judgement

• Compare the height of plate springs on both sides.
• If the value is smaller, it indicates the plate spring at
that side is abnormal. Check and repair the plate spring at
that side.

FR-016
