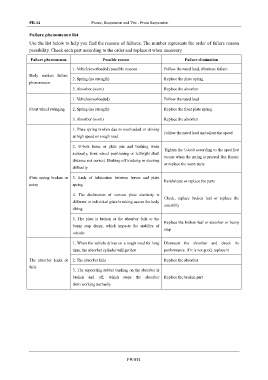

Page 1014 - Foton Workshop Manual - Auman EST-M

FR-14 Frame, Suspension and Tire - Front Suspension

Failure phenomenon list

Use the list below to help you find the reasons of failures. The number represents the order of failure reason
possibility. Check each part according to the order and replace it when necessary

Failure phenomenon Possible reason Failure elimination

1. Vehicle(overloaded) possible reasons Follow the rated load, eliminate failure
Body sunken failure
2. Spring (no strength) Replace the plate spring
phenomenon
3. Absorber (worn) Replace the absorber

1. Vehicle(overloaded) Follow the rated load

Front wheel swinging 2. Spring (no strength) Replace the front plate spring

3. Absorber (worn) Replace the absorber
1. Plate spring broken due to overloaded or driving
Follow the rated load and adjust the speed
at high speed on rough road.

2. U-bots loose or plate pin and bushing worn
Tighten the U-bolt according to the specified
seriously, front wheel positioning or left/right shaft
torque when the spring is pressed flat. Repair
distance not correct. Braking off tracking or steering
or replace the worn parts
difficulty

Plate spring broken or 3. Lack of lubrication between leaves and plate
Relubricate or replace the parts
noisy spring

4. The declination of various plate elasticity is
Check, replace broken leaf or replace the
different or individual plate breaking causes the body
assembly
tilting
5. The plate is broken or the absorber fails or the
Replace the broken leaf or absorber or bump
bump stop drops, which impacts the stability of
stop
vehicle

1. When the vehicle drives on a rough road for long Dismount the absorber and check its
time, the absorber cylinder will get hot performance. If it is not good, replace it

The absorber leaks or 2. The absorber fails Replace the absorber
fails
3. The supporting rubber bushing on the absorber is
broken and off, which stops the absorber Replace the broken part
from working normally

FR-014
