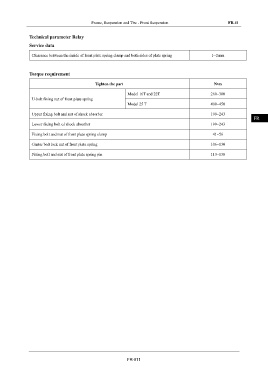

Frame, Suspension and Tire - Front Suspension FR-11
Technical parameter Relay IN
Service data
DI
Clearance between the inside of front plate spring clamp and both sides of plate spring 1~2mm
EG
Torque requirement
Tighten the part N•m TR
Model 16T and 22T 260~300
U-bolt fixing nut of front plate spring
AX
Model 25 T 400~450
Upper fixing bolt and nut of shock absorber 199~243
FR
Lower fixing bolt of shock absorber 199~243
Fixing bolt and nut of front plate spring clamp 41~56 ST
Center bolt lock nut of front plate spring 106~130
BR
Fixing bolt and nut of front plate spring pin 113~138
BW
EL
FR-011
