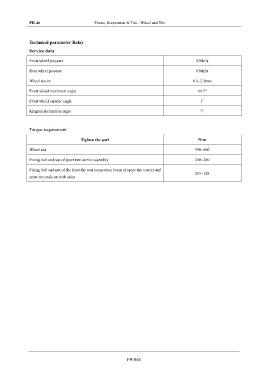

FR-46 Frame, Suspension & Tire - Wheel and Tire

Technical parameter Relay
Service data

Front wheel pressure 830kPa

Rear wheel pressure 830kPa

Wheel toe-in 0.5~2.5mm

Front wheel maximum angle 44.5°

Front wheel camber angle 1°
Kingpin inclination angle 7°

Torque requirement

Tighten the part N•m

Wheel nut 550~600

Fixing bolt and nut of spare tire carrier assembly 250~280

Fixing bolt and nut of the front the rear connection beam of spare tire carrier and
105~128
spare tire pads on both sides

FR-046
