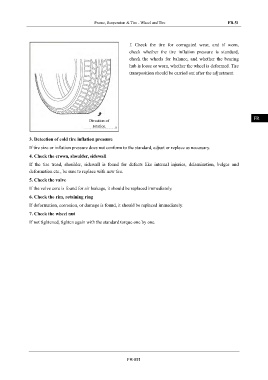

Page 1051 - Foton Workshop Manual - Auman EST-M

Frame, Suspension & Tire - Wheel and Tire FR-51

IN

f. Check the tire for corrugated wear, and if worn,
check whether the tire inflation pressure is standard, DI
check the wheels for balance, and whether the bearing
hub is loose or worn, whether the wheel is deformed. Tire
EG
transposition should be carried out after the adjustment

TR

AX

FR
Direction of
rotation

ST
3. Detection of cold tire inflation pressure

If tire size or inflation pressure does not conform to the standard, adjust or replace as necessary.
BR
4. Check the crown, shoulder, sidewall

If the tire tread, shoulder, sidewall is found for defects like internal injuries, delamination, bulges and
BW
deformation etc., be sure to replace with new tire.

5. Check the valve
EL
If the valve core is found for air leakage, it should be replaced immediately.

6. Check the rim, retaining ring

If deformation, corrosion, or damage is found, it should be replaced immediately.

7. Check the wheel nut

If not tightened, tighten again with the standard torque one by one.

FR-051
