P. 1052

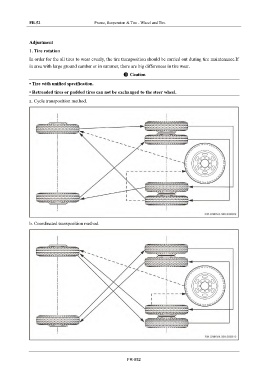

FR-52                        Frame, Suspension & Tire - Wheel and Tire


              Adjustment
              1. Tire rotation

              In order for the all tires to wear evenly, the tire transposition should be carried out during tire maintenance.If
              in area with large ground camber or in summer, there are big differences in tire wear.
                                                            Caution
              • Tire with unified specification.
              • Retreaded tires or padded tires can not be exchanged to the steer wheel.


              a. Cycle transposition method.






























              b. Coordinated transposition method.


































                                                         FR-052
