Frame, Suspension & Tire - Wheel and Tire FR-57

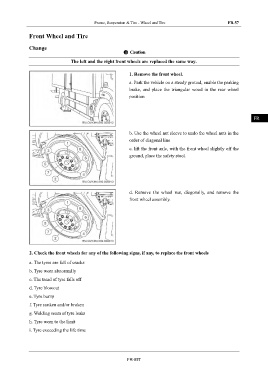

Front Wheel and Tire IN

Change
Caution DI
The left and the right front wheels are replaced the same way.
EG
1. Remove the front wheel.
a. Park the vehicle on a steady ground, enable the parking TR
brake, and place the triangular wood in the rear wheel
position
AX

FR

b. Use the wheel nut sleeve to undo the wheel nuts in the
ST
order of diagonal line

c. lift the front axle, with the front wheel slightly off the
BR
ground, place the safety stool.

BW

EL
d. Remove the wheel nut, diagonally, and remove the
front wheel assembly.

2. Check the front wheels for any of the following signs, if any, to replace the front wheels

a. The tyres are full of cracks
b. Tyre worn abnormally

c. The tread of tyre falls off
d. Tyre blowout

e. Tyre bump
f. Tyre sunken and/or broken
g. Welding seam of tyre leaks

h. Tyre worn to the limit
i. Tyre exceeding the life time

FR-057
