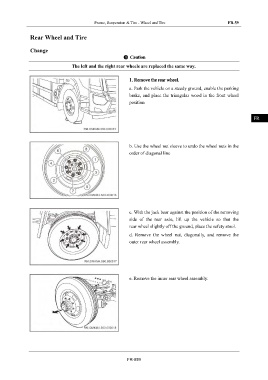

Frame, Suspension & Tire - Wheel and Tire FR-59

Rear Wheel and Tire IN

Change DI
Caution
The left and the right rear wheels are replaced the same way.
EG

1. Remove the rear wheel.
TR
a. Park the vehicle on a steady ground, enable the parking
brake, and place the triangular wood in the front wheel
position AX

FR

ST

b. Use the wheel nut sleeve to undo the wheel nuts in the
order of diagonal line BR

BW

EL

c. With the jack bear against the position of the removing
side of the rear axle, lift up the vehicle so that the
rear wheel slightly off the ground, place the safety stool.
d. Remove the wheel nut, diagonally, and remove the
outer rear wheel assembly.

e. Remove the inner rear wheel assembly.

FR-059
