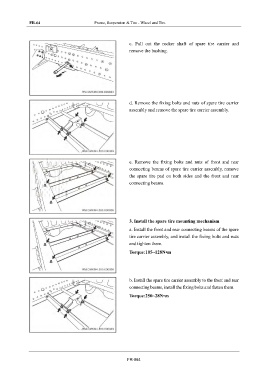

Page 1064 - Foton Workshop Manual - Auman EST-M

FR-64 Frame, Suspension & Tire - Wheel and Tire

c. Pull out the rocker shaft of spare tire carrier and
remove the bushing.

d. Remove the fixing bolts and nuts of spare tire carrier
assembly and remove the spare tire carrier assembly.

e. Remove the fixing bolts and nuts of front and rear
connecting beams of spare tire carrier assembly, remove
the spare tire pad on both sides and the front and rear
connecting beams.

3. Install the spare tire mounting mechanism

a. Install the front and rear connecting beams of the spare
tire carrier assembly, and install the fixing bolts and nuts
and tighten them.
Torque:105~128N•m

b. Install the spare tire carrier assembly to the front and rear
connecting beams, install the fixing bolts and fasten them.
Torque:250~28N•m

FR-064
