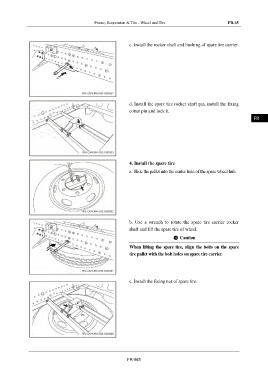

Page 1065 - Foton Workshop Manual - Auman EST-M

Frame, Suspension & Tire - Wheel and Tire FR-65

IN

c. Install the rocker shaft and bushing of spare tire carrier.
DI

EG

TR

AX
d. Install the spare tire rocker shaft pin, install the fixing
cotter pin and lock it.
FR

ST

BR

4. Install the spare tire
BW
a. Slide the pallet into the center hole of the spare wheel hub.

EL

b. Use a wrench to rotate the spare tire carrier rocker

shaft and lift the spare tire of wheel.
Caution

When lifting the spare tire, align the bolts on the spare
tire pallet with the bolt holes on spare tire carrier.

c. Install the fixing nut of spare tire.

FR-065
