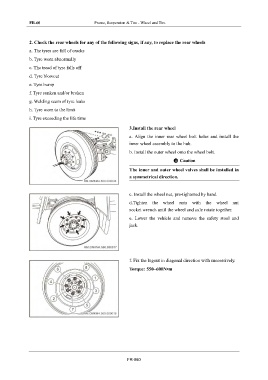

Page 1060 - Foton Workshop Manual - Auman EST-M

FR-60 Frame, Suspension & Tire - Wheel and Tire

2. Check the rear wheels for any of the following signs, if any, to replace the rear wheels

a. The tyres are full of cracks
b. Tyre worn abnormally
c. The tread of tyre falls off

d. Tyre blowout
e. Tyre bump
f. Tyre sunken and/or broken

g. Welding seam of tyre leaks
h. Tyre worn to the limit
i. Tyre exceeding the life time
3.Install the rear wheel

a. Align the inner rear wheel bolt holes and install the
inner wheel assembly to the hub.

b. Install the outer wheel onto the wheel bolt.
Caution
The inner and outer wheel valves shall be installed in
a symmetrical direction.

c. Install the wheel nut, pre-tightened by hand.

d.Tighten the wheel nuts with the wheel nut
socket wrench until the wheel and axle rotate together.
e. Lower the vehicle and remove the safety stool and
jack.

f. Fix the lugnut in diagonal direction with successively.
Torque: 550~600N•m

FR-060
