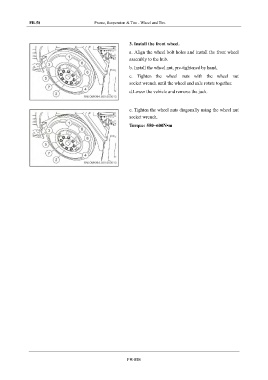

Page 1058 - Foton Workshop Manual - Auman EST-M

FR-58 Frame, Suspension & Tire - Wheel and Tire

3. Install the front wheel.

a. Align the wheel bolt holes and install the front wheel
assembly to the hub.
b. Install the wheel nut, pre-tightened by hand,

c. Tighten the wheel nuts with the wheel nut
socket wrench until the wheel and axle rotate together.

d.Lower the vehicle and remove the jack.

e. Tighten the wheel nuts diagonally using the wheel nut
socket wrench.
Torque: 550~600N•m

FR-058
