Page 1050 - Foton Workshop Manual - Auman EST-M

FR-50 Frame, Suspension & Tire - Wheel and Tire

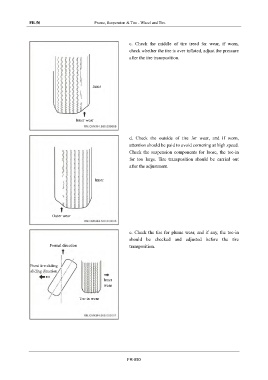

c. Check the middle of tire tread for wear, if worn,
check whether the tire is over inflated, adjust the pressure
after the tire transposition.

Inner

Inner wear

d. Check the outside of tire for wear, and if worn,
attention should be paid to avoid cornering at high speed.
Check the suspension components for loose, the toe-in
for too large. Tire transposition should be carried out
after the adjustment.

Inner

Outer wear

e. Check the tire for plume wear, and if any, the toe-in
should be checked and adjusted before the tire
Formal direction transposition.

Front tire sliding
sliding direction

Inner
wear

Toe-in wear

FR-050
