Frame, Suspension & Tire - Wheel and Tire FR-49

IN

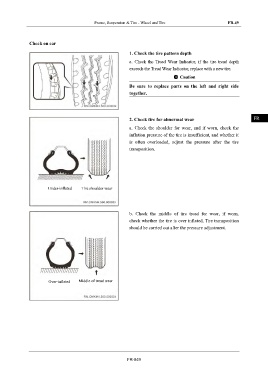

Check on car

1. Check the tire pattern depth DI

a. Check the Tread Wear Indicator, if the tire tread depth
exceeds the Tread Wear Indicator, replace with a new tire. EG
Caution

Be sure to replace parts on the left and right side TR
together.

AX

2. Check tire for abnormal wear FR

a. Check the shoulder for wear, and if worn, check the
inflation pressure of the tire is insufficient, and whether it ST
is often overloaded, adjust the pressure after the tire
transposition.
BR

BW

EL
Under-inflated Tire shoulder wear

b. Check the middle of tire tread for wear, if worn,

check whether the tire is over inflated, Tire transposition
should be carried out after the pressure adjustment.

Over-inflated Middle of tread wear
