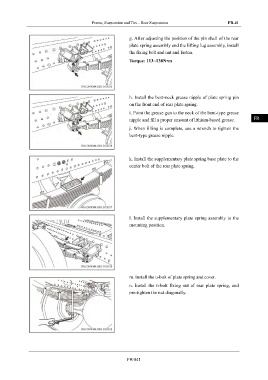

Page 1041 - Foton Workshop Manual - Auman EST-M

Frame, Suspension and Tire - Rear Suspension FR-41

IN
g. After adjusting the position of the pin shaft of the rear

plate spring assembly and the lifting lug assembly, install
the fixing bolt and nut and fasten. DI
Torque: 113~138N•m
EG

TR

h. Install the bent-neck grease nipple of plate spring pin
AX
on the front end of rear plate spring.

i. Point the grease gun to the neck of the bent-type grease
FR
nipple and fill a proper amount of lithium-based grease.
j. When filling is complete, use a wrench to tighten the
bent-type grease nipple. ST

BR
k. Install the supplementary plate spring base plate to the
center bolt of the rear plate spring. BW

EL

l. Install the supplementary plate spring assembly to the
mounting position.

m. Install the u-bolt of plate spring and cover.

n. Install the u-bolt fixing nut of rear plate spring, and
pre-tighten the nut diagonally.

FR-041
