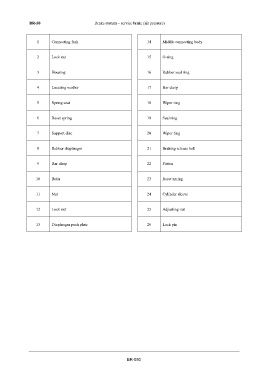

BR-50 Brake system – service brake (air pressure)

1 Connecting fork 14 Middle connecting body

2 Lock nut 15 O-ring

3 Housing 16 Rubber seal ring

4 Locating washer 17 Bar clasp

5 Spring seat 18 Wiper ring

6 Reset spring 19 Seal ring

7 Support disc 20 Wiper ring

8 Rubber diaphragm 21 Braking release bolt

9 Bar clasp 22 Piston

10 Bolts 23 Reset spring

11 Nut 24 Cylinder sleeve

12 Lock nut 25 Adjusting nut

13 Diaphragm push plate 26 Lock pin

BR-050
