Brake system – service brake (air pressure) BR-51

Check and repair IN

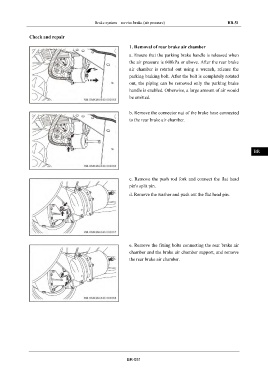

1. Removal of rear brake air chamber
DI
a. Ensure that the parking brake handle is released when

the air pressure is 600kPa or above. After the rear brake
air chamber is rotated out using a wrench, release the EG
parking braking bolt. After the bolt is completely rotated
out, the piping can be removed only the parking brake TR
handle is enabled. Otherwise, a large amount of air would

be emitted.
AX

b. Remove the connector nut of the brake hose connected
FR
to the rear brake air chamber.

ST

BR

BW

c. Remove the push rod fork and connect the flat head
pin's split pin. EL
d. Remove the washer and push out the flat head pin.

e. Remove the fixing bolts connecting the rear brake air
chamber and the brake air chamber support, and remove
the rear brake air chamber.

BR-051
