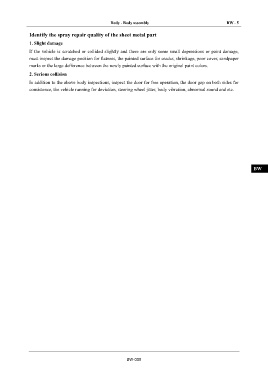

Body - Body assembly BW - 5
Identify the spray repair quality of the sheet metal part IN
1. Slight damage
If the vehicle is scratched or collided slightly and there are only some small depressions or paint damage, DI
must inspect the damage position for flatness, the painted surface for cracks, shrinkage, poor cover, sandpaper
marks or the large defference between the newly painted surface with the original paint colors.
EG
2. Serious collision
In addition to the above body inspections, inspect the door for free operation, the door gap on both sides for
TR
consistence, the vehicle running for deviation, steering wheel jitter, body vibration, abnormal sound and etc.
AX
FR
ST
BR
BW
EL
BW-005
