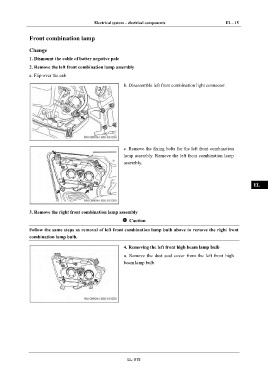

Electrical system – electrical components EL - 15
IN
Front combination lamp
Change DI
1. Dismount the cable of batter negative pole
2. Remove the left front combination lamp assembly EG
a. Flip-over the cab
b. Disassemble left front combination light connector. TR
AX
FR
ST
c. Remove the fixing bolts for the left front combination
BR
lamp assembly. Remove the left front combination lamp
assembly.
BW
EL
3. Remove the right front combination lamp assembly
Caution
Follow the same steps as removal of left front combination lamp bulb above to remove the right front
combination lamp bulb.
4. Removing the left front high beam lamp bulb
a. Remove the dust seal cover from the left front high
beam lamp bulb.
EL-015
