Page 1440 - Foton Workshop Manual - Auman EST-M
P. 1440

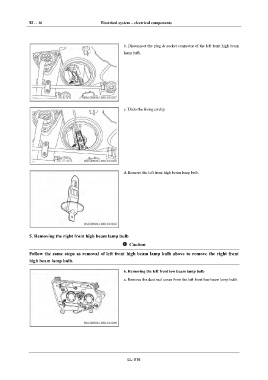

EL - 16 Electrical system – electrical components
IN
b. Disconnect the plug & socket connector of the left front high beam
DI lamp bulb.
EG
TR
AX
c. Undo the fixing circlip
FR
ST
BR
BW
d. Remove the left front high beam lamp bulb.
EL
5. Removing the right front high beam lamp bulb
Caution
Follow the same steps as removal of left front high beam lamp bulb above to remove the right front
high beam lamp bulb.
6. Removing the left front low beam lamp bulb
a. Remove the dust seal cover from the left front low beam lamp bulb.
EL-016
