P. 1443

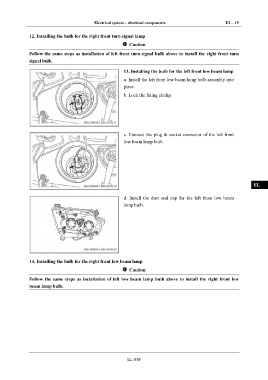

Electrical system – electrical components EL - 19
12. Installing the bulb for the right front turn signal lamp IN
Caution
DI
Follow the same steps as installation of left front turn signal bulb above to install the right front turn
signal bulb.
EG
13. Installing the bulb for the left front low beam lamp
a. Install the left front low beam lamp bulb assembly into
TR
place.
b. Lock the fixing circlip.
AX
FR
c. Connect the plug & socket connector of the left front ST
low beam lamp bulb.
BR
BW
EL
d. Install the dust seal cap for the left front low beam
lamp bulb.
14. Installing the bulb for the right front low beam lamp
Caution
Follow the same steps as installation of left low beam lamp bulb above to install the right front low
beam lamp bulb.
EL-019
