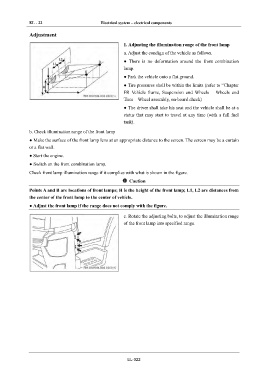

EL - 22 Electrical system – electrical components

IN Adjustment

1. Adjusting the illumination range of the front lamp
DI a. Adjust the condign of the vehicle as follows.
● There is no deformation around the front combination
EG lamp.

● Park the vehicle onto a flat ground.
TR ● Tire pressures shall be within the limits (refer to “Chapter
FR Vehicle frame, Suspension and Wheels – Wheels and
Tires – Wheel assembly, on-board check)
AX
● The driver shall take his seat and the vehicle shall be at a

status that may start to travel at any time (with a full fuel
FR
tank).

b. Check illumination range of the front lamp
ST
● Make the surface of the front lamp lens at an appropriate distance to the screen. The screen may be a curtain

or a flat wall.
BR
● Start the engine.

● Switch on the front combination lamp.
BW
Check front lamp illumination range if it complies with what is shown in the figure.

Caution
EL
Points A and B are locations of front lamps; H is the height of the front lamp; L1, L2 are distances from

the center of the front lamp to the center of vehicle.

● Adjust the front lamp if the range does not comply with the figure.

c. Rotate the adjusting bolts, to adjust the illumination range

of the front lamp into specified range.

EL-022
