EL - 26 Electrical system – electrical components

IN

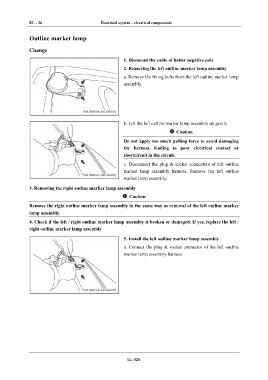

Outline marker lamp

DI Change
1. Dismount the cable of batter negative pole
EG 2. Removing the left outline marker lamp assembly

a. Remove the fixing bolts from the left outline marker lamp
TR assembly.

AX

FR
b. Lift the left outline marker lamp assembly up gently.

Caution
ST
Do not apply too much pulling force to avoid damaging

the harness, leading to poor electrical contact or
BR
shortcircuit in the circuit.

c. Disconnect the plug & socket connectors of left outline
BW
marker lamp assembly harness. Remove the left outline
marker lamp assembly.

EL
3. Removing the right outline marker lamp assembly

Caution

Remove the right outline marker lamp assembly in the same way as removal of the left outline marker

lamp assembly.

4. Check if the left / right outline marker lamp assembly is broken or damaged. If yes, replace the left /

right outline marker lamp assembly

5. Install the left outline marker lamp assembly

a. Connect the plug & socket connector of the left outline

marker lamp assembly harness.

EL-026
