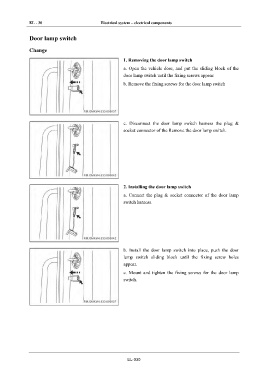

EL - 30 Electrical system – electrical components
IN
Door lamp switch
DI Change
1. Removing the door lamp switch
EG a. Open the vehicle door, and put the sliding block of the
door lamp switch until the fixing screws appear.
TR b. Remove the fixing screws for the door lamp switch
AX
FR
c. Disconnect the door lamp switch harness the plug &
socket connector of the Remove the door lamp switch.
ST
BR
BW
EL 2. Installing the door lamp switch
a. Connect the plug & socket connector of the door lamp
switch harness.
b. Install the door lamp switch into place, push the door
lamp switch sliding block until the fixing screw holes
appear.
c. Mount and tighten the fixing screws for the door lamp
switch.
EL-030
