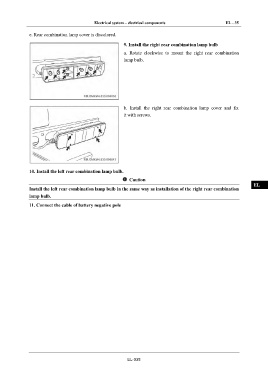

Page 1459 - Foton Workshop Manual - Auman EST-M
P. 1459
Electrical system – electrical components EL - 35
e. Rear combination lamp cover is discolored. IN
9. Install the right rear combination lamp bulb
a. Rotate clockwise to mount the right rear combination DI
lamp bulb.
EG
TR
AX
b. Install the right rear combination lamp cover and fix
it with screws.
FR
ST
BR
BW
10. Install the left rear combination lamp bulb.
Caution
EL
Install the left rear combination lamp bulb in the same way as installation of the right rear combination
lamp bulb.
11. Connect the cable of battery negative pole
EL-035
