Electrical system – electrical components EL - 37
IN

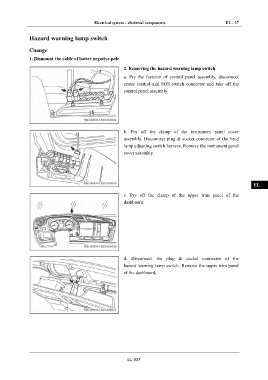

Hazard warning lamp switch
Change DI
1. Dismount the cable of batter negative pole
2. Removing the hazard warning lamp switch EG
a. Pry the fastener of control panel assembly, disconnect
cruise control and SOS switch connector and take off the TR
control panel assembly
AX
FR
b. Pry off the clamp of the instrument panel cover
ST
assembly. Disconnect plug & socket connector of the head
lamp adjusting switch harness. Remove the instrument panel
cover assembly. BR
BW
EL
c. Pry off the clamp of the upper trim panel of the
dashboard.
d. Disconnect the plug & socket connector of the
hazard warning lamp switch. Remove the upper trim panel
of the dashboard.
EL-037
