Page 1466 - Foton Workshop Manual - Auman EST-M
P. 1466
EL - 42 Electrical system – electrical components

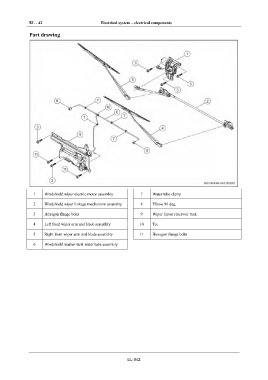

IN Part drawing
DI
EG
TR
AX
FR
ST
BR
BW
EL
1 Windshield wiper electric motor assembly 7 Water tube clamp
2 Windshield wiper linkage mechanism assembly 8 Elbow 90 deg.
3 Hexagon flange bolts 9 Wiper liquor reservoir tank
4 Left front wiper arm and blade assembly 10 Tee
5 Right front wiper arm and blade assembly 11 Hexagon flange bolts
6 Windshield washer tank water tube assembly
EL-042
