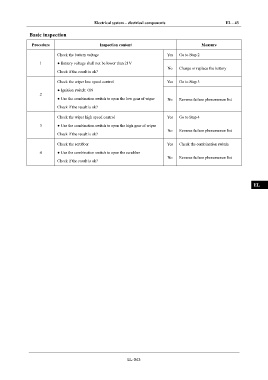

Electrical system – electrical components EL - 43
Basic inspection IN
Procedure Inspection content Measure
DI
Check the battery voltage Yes Go to Step 2
1 ● Battery voltage shall not be lower than 21V
No Charge or replace the battery EG
Check if the result is ok?
Check the wiper low speed control Yes Go to Step 3
TR
● Ignition switch: ON
2
● Use the combination switch to open the low gear of wiper No Reverse failure phenomenon list
AX
Check if the result is ok?
Check the wiper high speed control Yes Go to Step 4 FR
3 ● Use the combination switch to open the high gear of wiper
No Reverse failure phenomenon list
Check if the result is ok? ST
Check the scrubber Yes Check the combination switch
4 ● Use the combination switch to open the scrubber BR
No Reverse failure phenomenon list
Check if the result is ok?
BW
EL
EL-043
