EL - 32 Electrical system – electrical components
IN

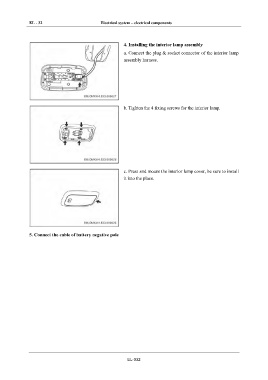

4. Installing the interior lamp assembly
DI a. Connect the plug & socket connector of the interior lamp
assembly harness.
EG
TR
AX
b. Tighten the 4 fixing screws for the interior lamp.
FR
ST
BR
BW
c. Press and mount the interior lamp cover, be sure to install
it into the place.
EL
5. Connect the cable of battery negative pole
EL-032
