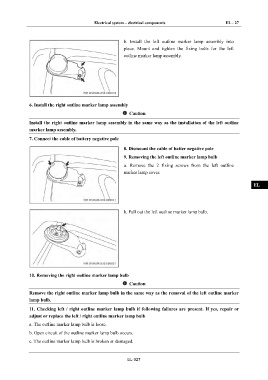

Electrical system – electrical components EL - 27

IN
b. Install the left outline marker lamp assembly into

place. Mount and tighten the fixing bolts for the left
DI
outline marker lamp assembly.

EG

TR

AX
6. Install the right outline marker lamp assembly

Caution
FR
Install the right outline marker lamp assembly in the same way as the installation of the left outline

marker lamp assembly.
ST
7. Connect the cable of battery negative pole

8. Dismount the cable of batter negative pole
BR
9. Removing the left outline marker lamp bulb

a. Remove the 2 fixing screws from the left outline
BW
marker lamp cover.

EL

b. Pull out the left outline marker lamp bulb.

10. Removing the right outline marker lamp bulb
Caution

Remove the right outline marker lamp bulb in the same way as the removal of the left outline marker
lamp bulb.
11. Checking left / right outline marker lamp bulb if following failures are present. If yes, repair or
adjust or replace the left / right outline marker lamp bulb

a. The outline marker lamp bulb is loose.

b. Open circuit of the outline marker lamp bulb occurs.

c. The outline marker lamp bulb is broken or damaged.

EL-027
