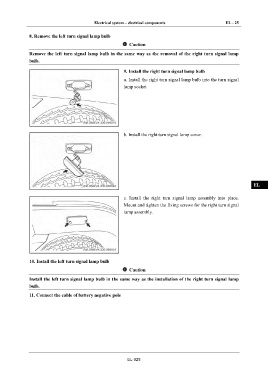

Electrical system – electrical components EL - 25
8. Remove the left turn signal lamp bulb IN
Caution
DI
Remove the left turn signal lamp bulb in the same way as the removal of the right turn signal lamp
bulb.
EG
9. Install the right turn signal lamp bulb
a. Install the right turn signal lamp bulb into the turn signal
TR
lamp socket.
AX
FR
b. Install the right turn signal lamp cover. ST
BR
BW
EL
c. Install the right turn signal lamp assembly into place.
Mount and tighten the fixing screws for the right turn signal
lamp assembly.
10. Install the left turn signal lamp bulb
Caution
Install the left turn signal lamp bulb in the same way as the installation of the right turn signal lamp
bulb.
11. Connect the cable of battery negative pole
EL-025
